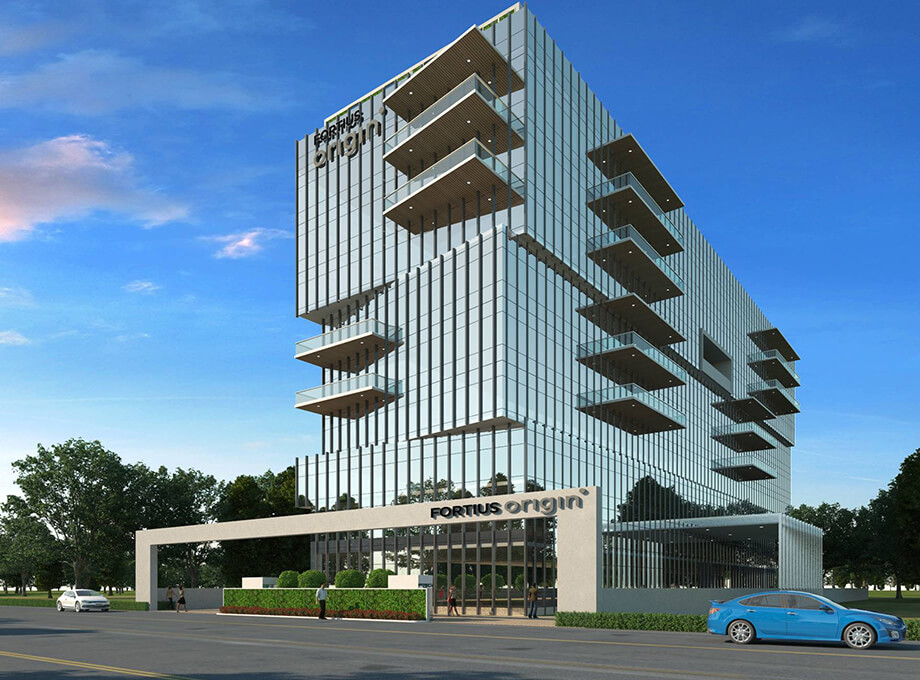

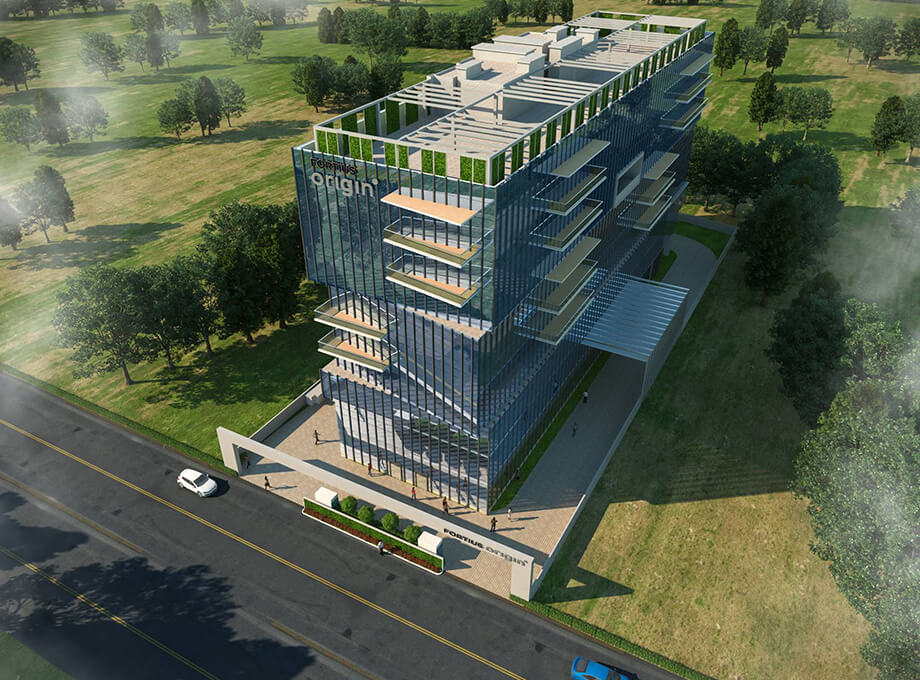

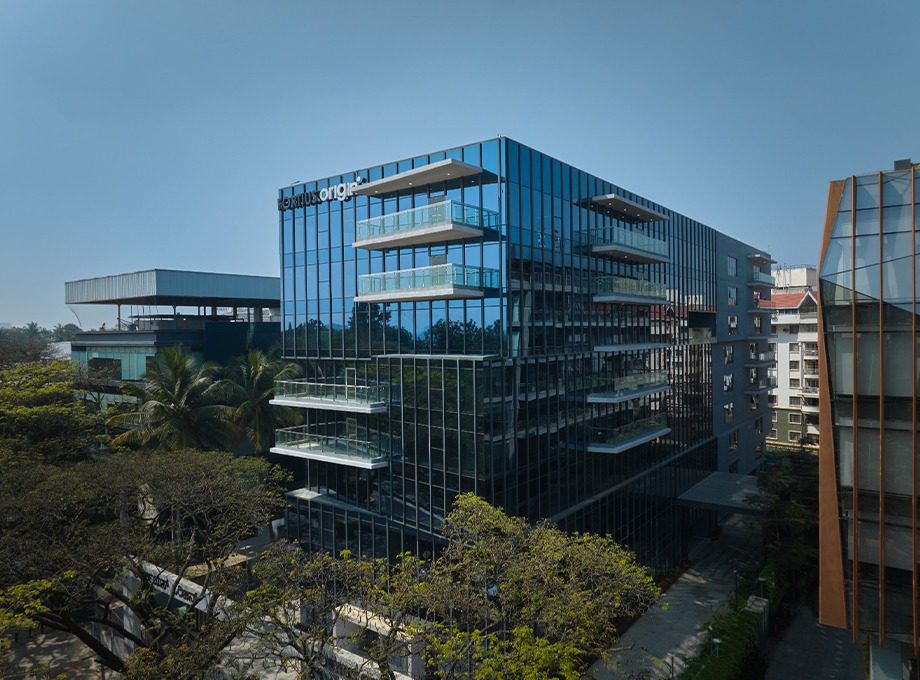

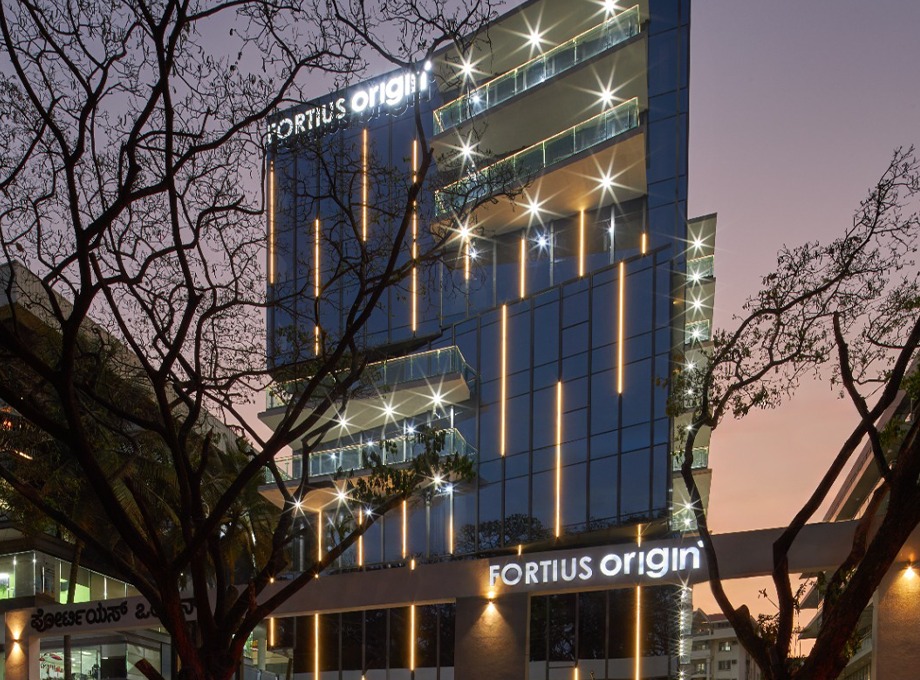

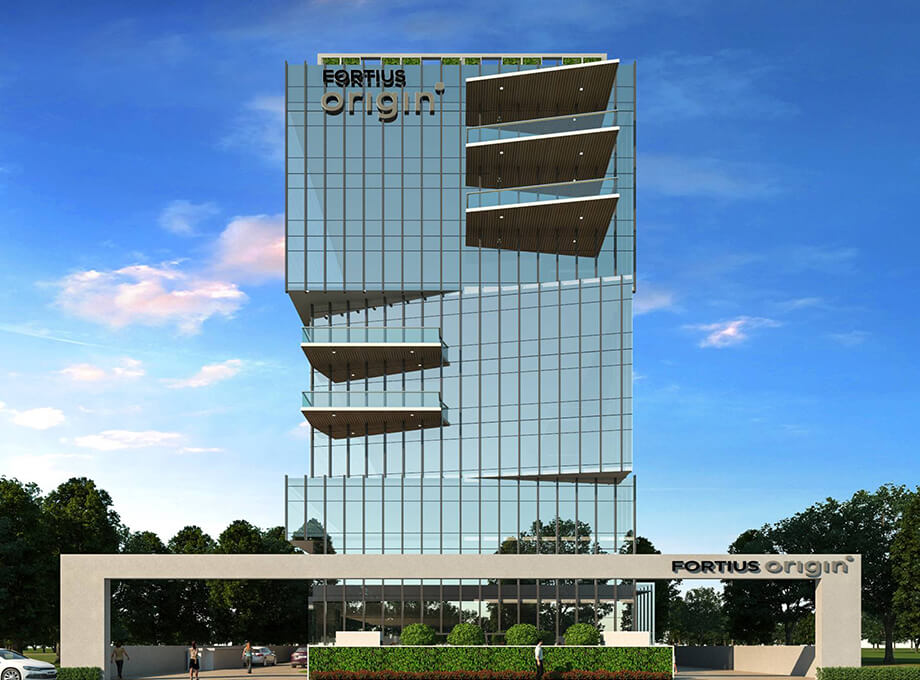

Fortius Origin, the premium commercial development of Fortius Infra is strategically positioned in the heart of Koramangala, the uber exclusive niche in the startup hub of Bangalore.

Project

Commercial

Building Details

3B+G+8 floors

Built up area

150,000 sft

Place

Koramangala 3rd Block, Bangalore

Project Manager

Colliers International

Status

Completed

PROJECT FEATURES

ARCHITECTURE

  • 3 Basements + Ground + 8 floors
  • Double glazed facade
  • USGBC Leed Gold rating - Version 4
  • NBC-2016 compliant
  • Basement car parking

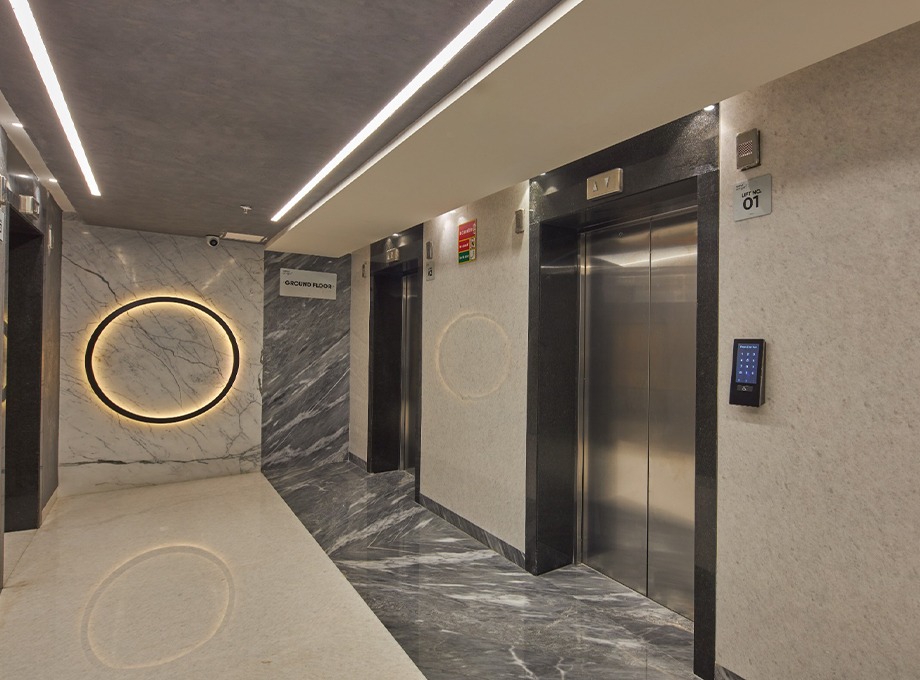

  • Opulent lobby

Electrical

  • 11 KVA power supply from BESCOM
  • Transformer - 1 x 1600 KVA
  • 100% power-back up ensured by a prime rated DG - 2x750 KVA
  • 7 VA/Sq ft provided at each floor level
  • Connected load : 1660 KVA
  • Demand load : 1205 KVA
  • Raising main with tap-off box (N configuration)
  • Space provision at ground level for earthing requirements of tenants for UPS & servers
  • Provision for communications at main reception/lobby, communication room, BMS room
  • Integrated security surveillance system

Structure

  • PT Flat slab structural system with minimal beam hindrance ensuring a clear ceiling and height.
  • Floor height - Ground floor : 3375mm (FFL to FFL)
    Floor height - Typical floors : 3275mm (FFL to FFL)
  • Ceiling to floor height - Typical Floors : 2975mm from FFL to Slab bottom

Fire Fighting

  • Fire fighting system compliant with the latest NBC 2016 norms

HVAC

  • Air-conditioned lift lobby and entrance lobby
  • VRV Outdoor Unit with EER 12 and 3.4 COP with provision for mounting additional outdoor AC units of tenants
  • Internal distribution within tenant scope

PHE

  • Energy efficient distribution network for all toilets & service areas
  • Piping system with uniform pressure for all users.
  • STP, WTP provided as per Standards.
  • Gravity flow water supply system to ensure uniform pressure throughout
